SYSTEMS FOR DYEING / FINISHING / COATING

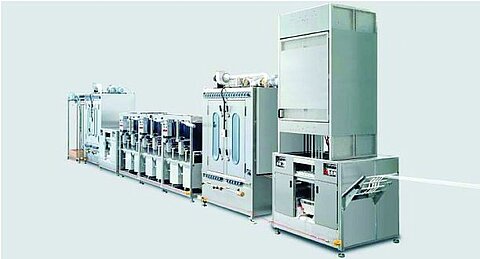

MFR... - COMPACT CONTINUOUS DYEING AND FINISHING MACHINE
For medium size production quantities.
For light to moderately heavy, elastic and non-elastic ribbons.
- Important: Uniform temperature distribution in the fixing chamber due to controlled air flow
- Important: Integration of specific customer requirements possible due to modular machine design
- Important: Ribbon tension controls every 25 m in the fixing and drying unit
- Energy-saving way of operation by an efficient hot-air dryer and flexible energy supply (gas, external steam, electrical)
- The modular machine construction principle allows the efficient integration of customer-specific requirements
- High quality of the construction and the machine components
- Continuous dyeing and finishing of elastic and non-elastic ribbons
- Small to large production quantities
- Ribbons made of polyamide (nylon), polyester, cotton, viscose, rayon or acetate
- Light to medium ribbons
- PLC control with touch-screen
- Special design for velvet ribbons and hook and loop fasteners
| Basic models | S: polyamide, cotton, viscose, acetate, rayon | ||||||||
| F: polyester | |||||||||
| C: polyester, polyamide, cotton, viscose, acetate, rayon | |||||||||
| Roller width [mm] | 300 | 400 | 600 | ||||||
| Ribbon content in the steamer [m] | 50 or 100 | ||||||||
| Ribbon content in the hot air dryer [m] | 50 or 100 | ||||||||
| Max. adjustable speed [m/min] | 30 or 40 | ||||||||
